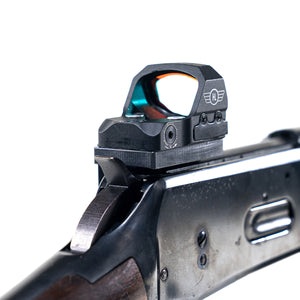

Mount a reflex red dot sight to your Winchester 1871, 1886, 1892, or 1894 Lever Action Rifle without any permanent modifications to the firearm.

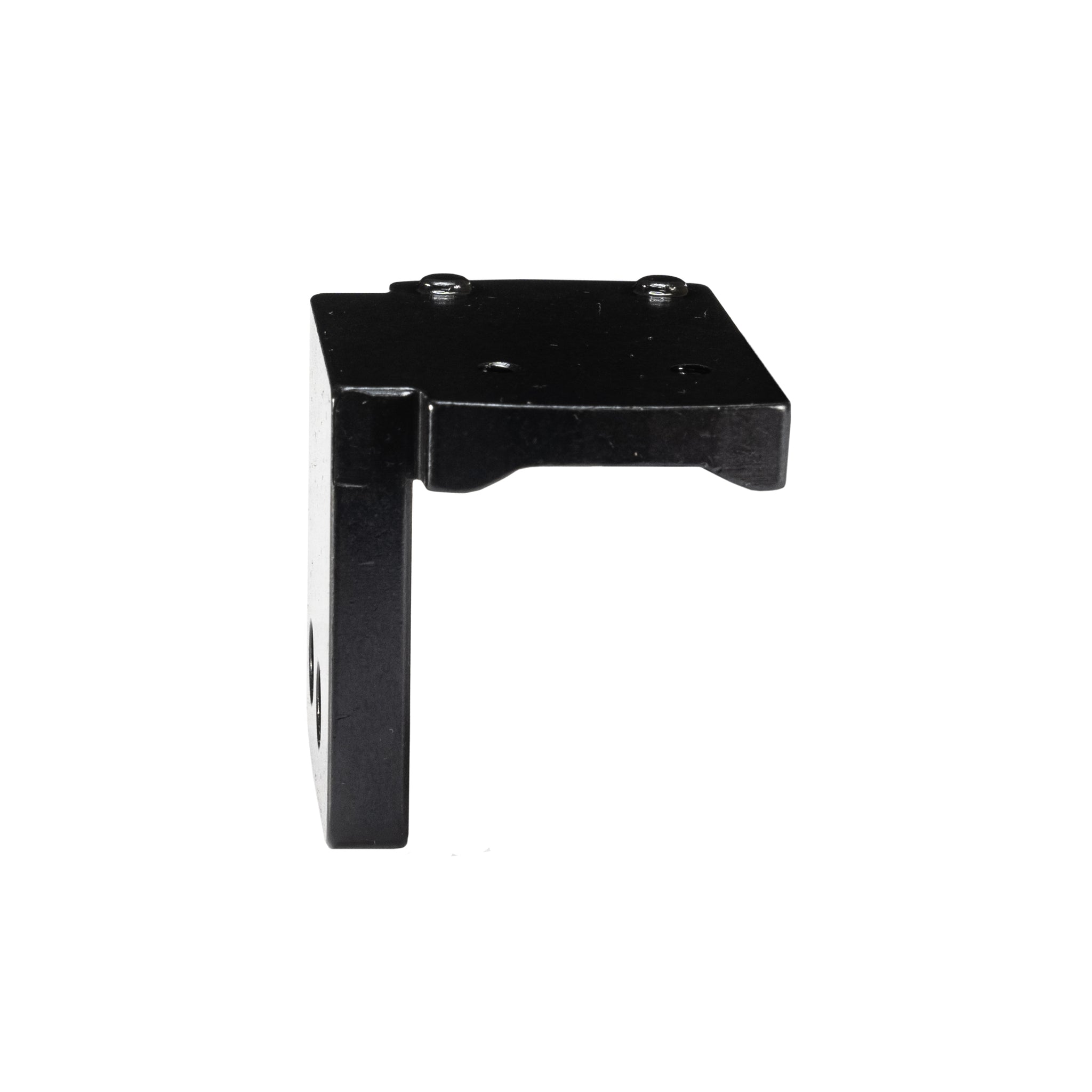

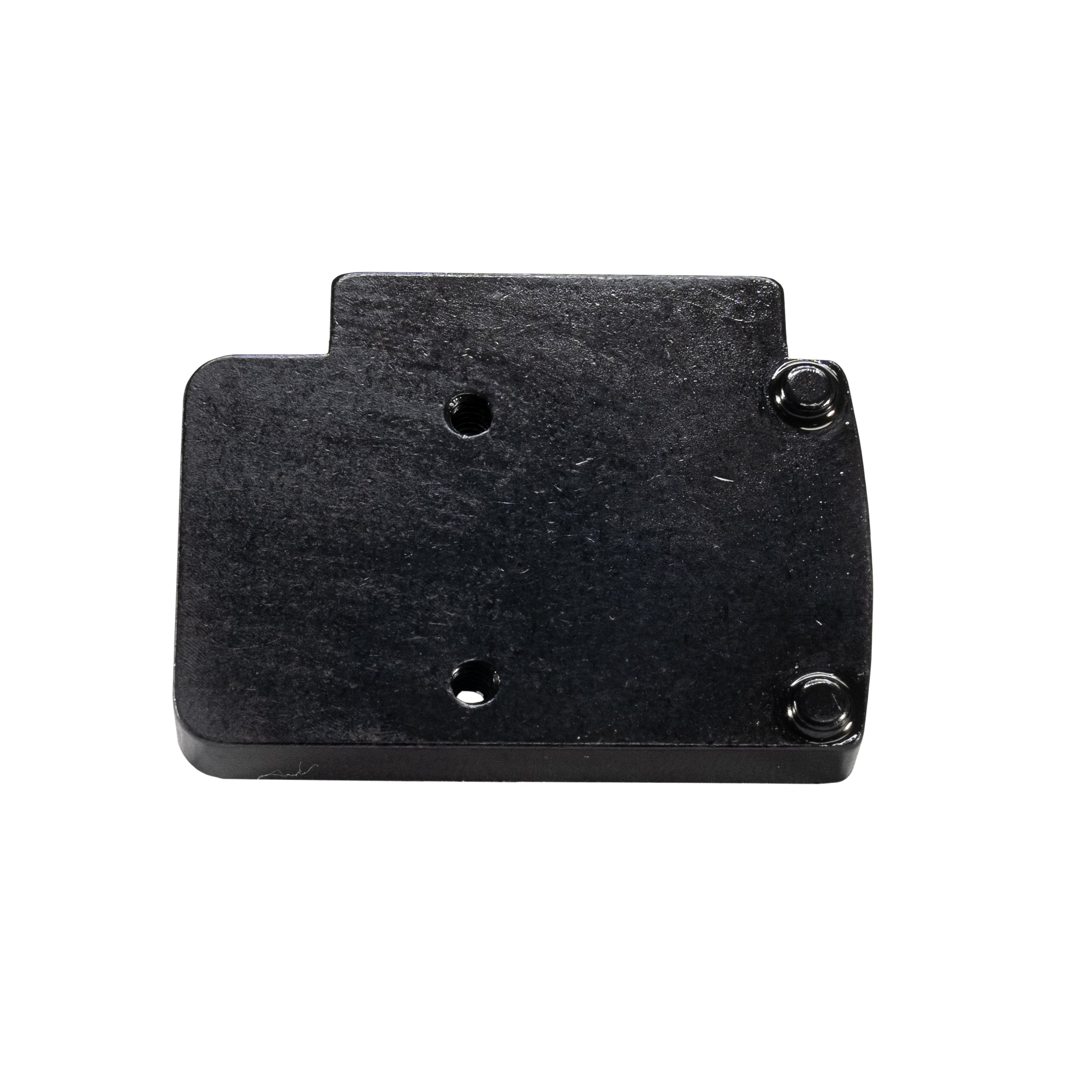

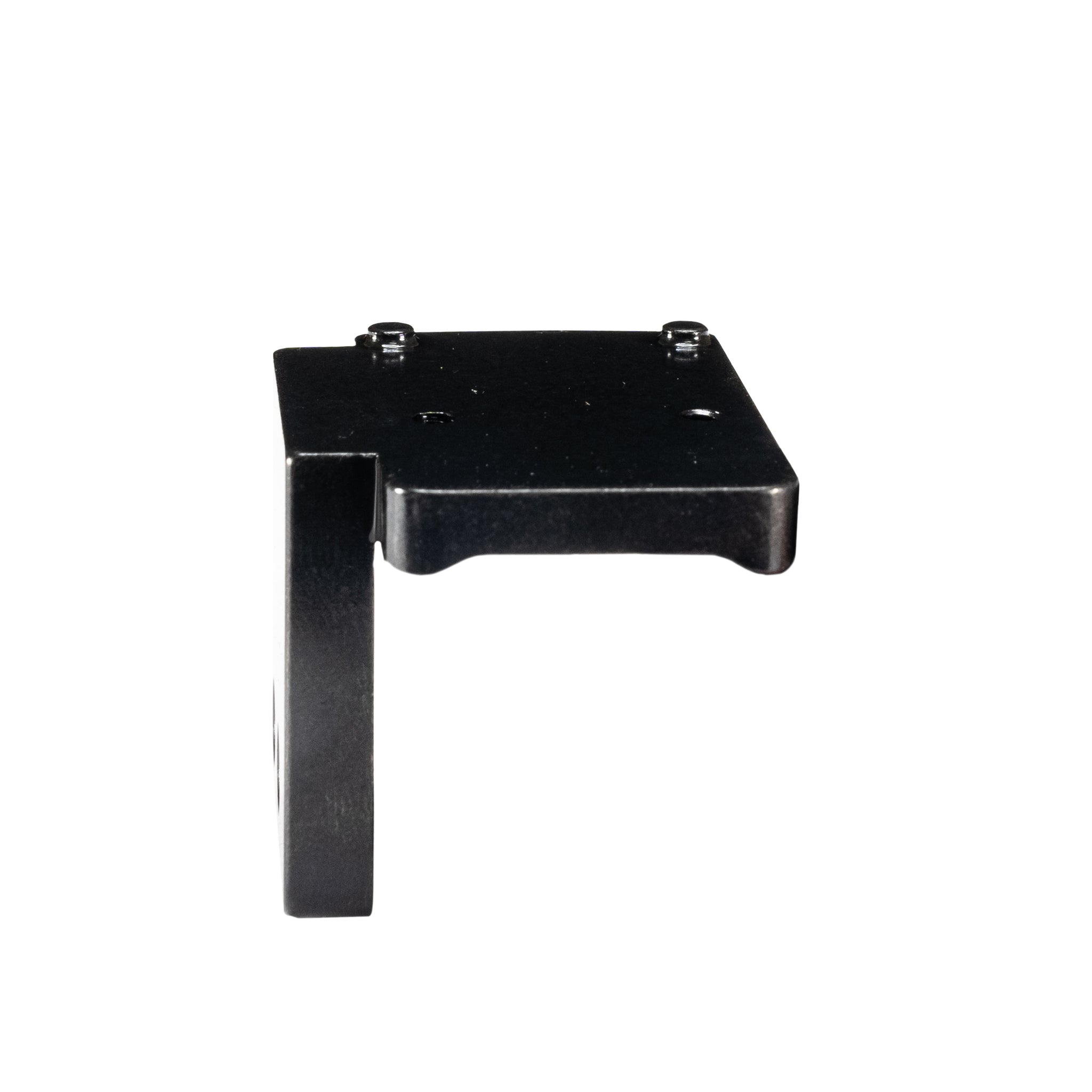

Redesigned for a perfect optic fit, this mounting plate is now available in two dedicated versions: one precision-cut for the RMR footprint, and another specifically for the RMSc footprint. This allows you to seamlessly mount a wide variety of modern optics, including the Hi-Lux TD-3C, directly onto your top-ejection Winchester lever rifle.

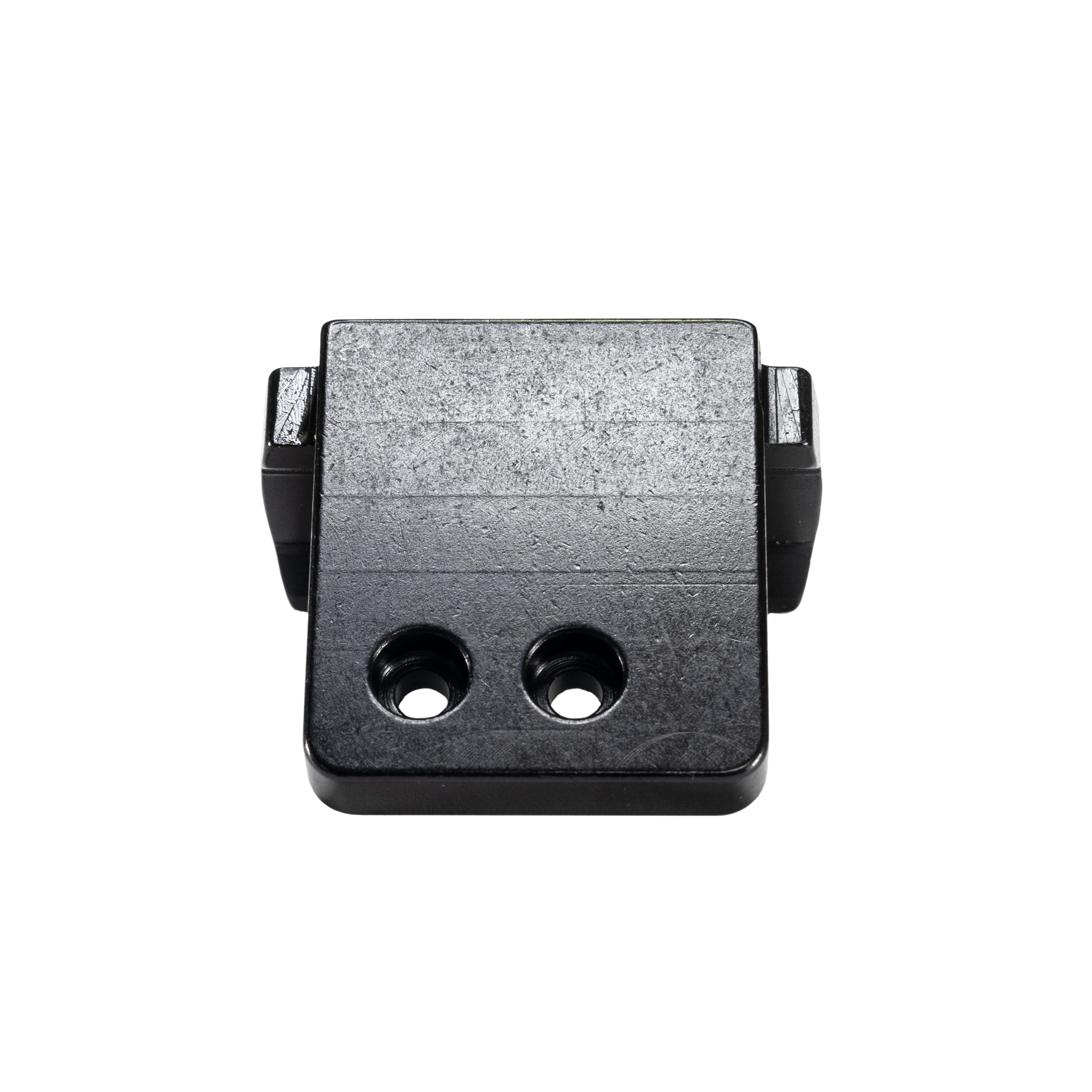

The base mounts directly to the two factory rear peep sight mounting holes on the left side of the receiver (spaced 0.400" apart). We eliminated the adjustment slots found on our legacy models, replacing them with fixed, counterbored holes. Combined with significantly tightened machining tolerances, this ensures a rock-solid, repeatable zero under heavy recoil.
Every mount is precision CNC-machined from solid steel here in Torrance, California.
Key Specifications:
Firearm Compatibility: Winchester 1871, 1886, 1892, 1894, and any rifle with peep sight mounting holes.
Optic Footprints: Available in dedicated RMR or RMSc footprints
Mounting Interface: Left-side receiver (attaches to peep sight holes spaced 0.400" apart)
Construction: Precision CNC machined from solid steel in the USA
Finish: Black Oxide
Hardware: Includes two 6-48 mounting screws
