Objective Lens Diameter: 56mm
Eye Relief: 3.5"
Parallax:10 Yds to Infinity
Field of View:24' - 4.8' @ 100 Yards
Internal Elevation Adjustment Range: 110 MOA (32 Mils)
7075-T6 Aluminum Body
Zero Stop Turrets
Extra Low Dispersion Glass
The PR5 5-25X56 FFP rifle scope offers remarkable clarity and precise tracking. The body is turned from a solid 7075-T6 bar stock and offers exceptional rigidity and concentricity.
The glass lens elements are precisely ground and fully multicoated to offer outstanding light transmission. The APO Objective design incorporates a triplet lens with Japanese ED lens elements, which greatly reduces chromatic aberration.

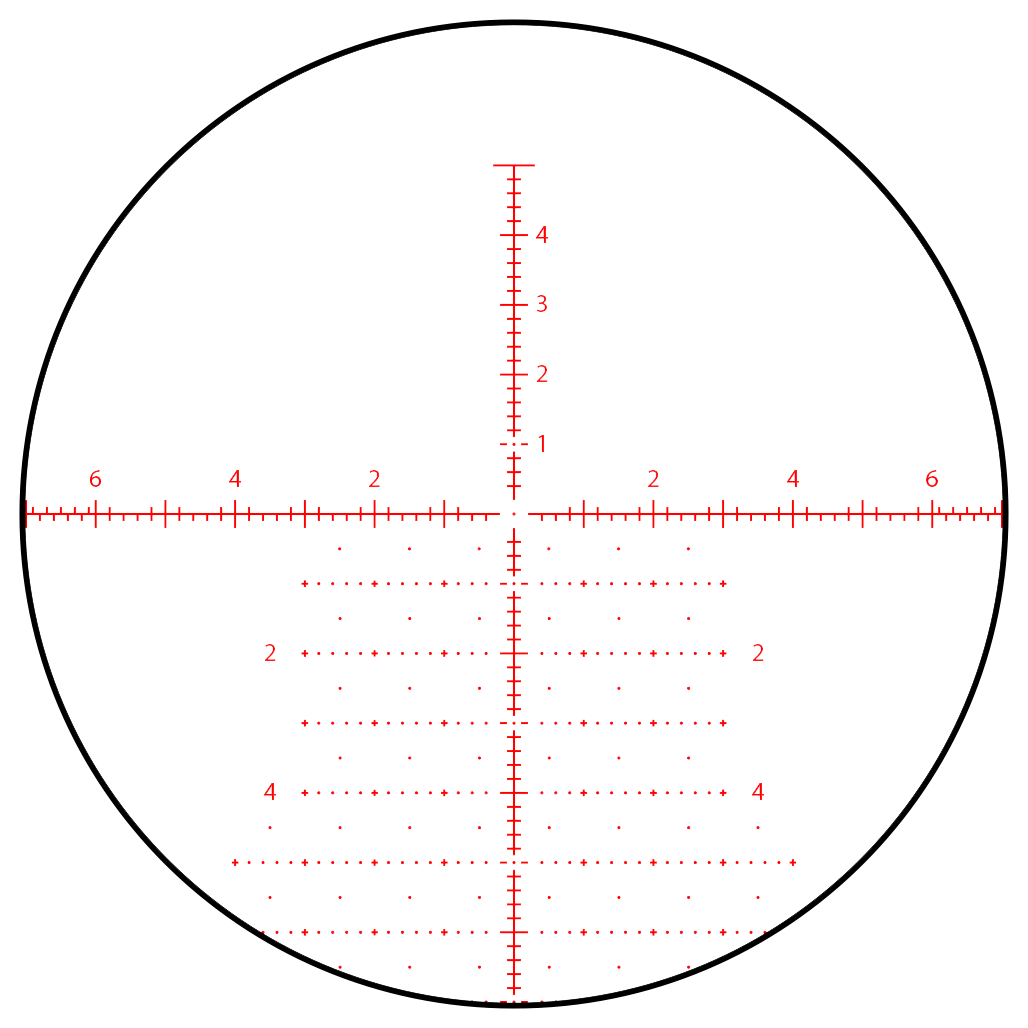

The diameter of the center dot and all dots in the grid subtend 0.05 mils. The opening in the center of the reticle subtends 0.4 mils x 0.4 mils.
The tickmarks on the horizontal and vertical axes subtend 0.2 mils. The tickmarks between 6 to 8 mils on the horizontal axis subtend 0.1 mils.
In the lower half of the reticle, odd whole mil values on the vertical axis have floating 0.05 mil dots.
The rows of single dots indicate the 0.5 mil values in the grid.
The crosses subtend 0.1 x 0.1 mils and indicate the whole mil values in the grid.
The space between the thick black posts and the nearest bar on the center reticle subtends 0.5 mils.
