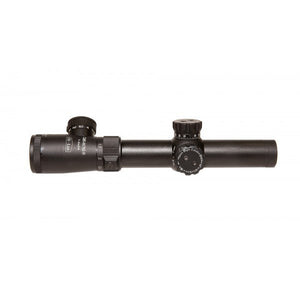

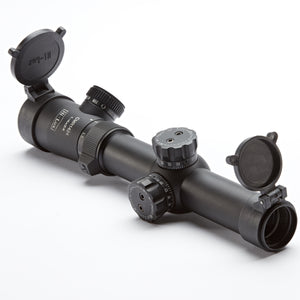

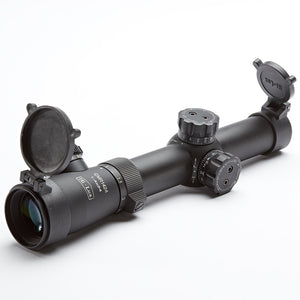

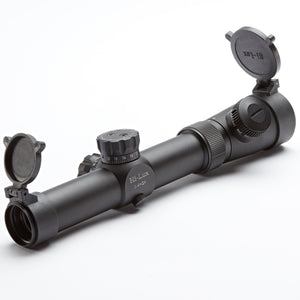

Hi-Lux Close to Medium Range Series (CMR1)

$330.00

Hi-Lux doesn’t believe a true military grade tactical scope should be prohibitively expensive. So using the real world experience of Special Operations combat veterans, competition shooters and sportsman we developed our 1-4x24mm CMR (Close Medium Range). This highly flexible design offers great speed up close yet precision at longer distances. With a magnification range starting at 1x it allows a rifleman to keep both eyes open, like a red dot sight, during tactical situations or when hunting dangerous game. Increasing the magnification to 4x allows distant targets to be identified, ranged and engaged.

This combination of capabilities makes for a far more flexible and useful optic than competing red dot sights, fixed power scopes or larger and heavier designs. Built on a compact yet robust 30mm tube, the CMR doesn’t add unnecessary bulk or weight to your rifle. Due to this the CMR is the perfect match for tactical and hunting rifles. In keeping with our name, the optical performance of the CMR is excellent. High quality fully multi-coated lenses are utilized to provide a clear and sharp image. Use in low light conditions hasn’t been overlooked and light transmission is the best in its class.

An extremely practical circular reticle aids in quick target acquisition by drawing the attention of the shooter’s eye to the center of the scope. This allows extremely rapid engagement of close-range targets. To insure targets are easily visible when scanning, the Bullet Drop Compensating illuminated reticle is uncluttered and easy to use. The upper half of the Field of View remains clean and uncluttered for unimpeded observation. To allow rapid engagement of distant targets without touching the elevation turret, short bar aiming points calibrated for standard 5.56mm and 7.62mm service ammo are provided.

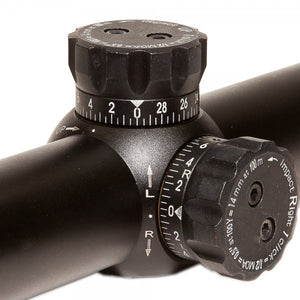

The reticle also provides quick ‘no-math’ rangefinding of distant targets. Plus red or green reticle illumination is available. If a rifleman has time, ballistic adjustments can be dialed in using the CMR’s low-profile uncapped finger adjustable turrets. The single-rotation turrets provide audible and tactical adjustments and features Leatherwood’s new “Zero Locking System”, which does exactly what it says. Once the shooter has the scope sighted in, this system allows that alignment to be locked in place. A rheostat allows easy adjustment of the illuminated reticle’s intensity and provides Night Vision settings for use with Night Vision Devices. Our 1-4x CMR scope was built to survive in the toughest of conditions, a military environment.

It has successfully passed abusive European military testing not only mounted on a rifle, but on a General Purpose Machine Gun as well. Other features include tough, wear resistant Perma-Coat soft luster blue-black finish, lenses polished to photographic quality, “Tri-Center” spring tension for positive windage and elevation adjustment, and a Fast Focus large diameter ocular lens. Hi-Lux’s CMR scope offers exceptional performance at a shockingly affordable price.

CMR1 Manual [download]

Product Information

Hi-Lux doesn’t believe a true military grade tactical scope should be prohibitively expensive. So using the real world experience of Special Operations combat veterans, competition shooters and sportsman we developed our 1-4x24mm CMR (Close Medium Range). This highly flexible design offers great speed up close yet precision at longer distances. With a magnification range starting at 1x it allows a rifleman to keep both eyes open, like a red dot sight, during tactical situations or when hunting dangerous game. Increasing the magnification to 4x allows distant targets to be identified, ranged and engaged.

This combination of capabilities makes for a far more flexible and useful optic than competing red dot sights, fixed power scopes or larger and heavier designs. Built on a compact yet robust 30mm tube, the CMR doesn’t add unnecessary bulk or weight to your rifle. Due to this the CMR is the perfect match for tactical and hunting rifles. In keeping with our name, the optical performance of the CMR is excellent. High quality fully multi-coated lenses are utilized to provide a clear and sharp image. Use in low light conditions hasn’t been overlooked and light transmission is the best in its class.

An extremely practical circular reticle aids in quick target acquisition by drawing the attention of the shooter’s eye to the center of the scope. This allows extremely rapid engagement of close-range targets. To insure targets are easily visible when scanning, the Bullet Drop Compensating illuminated reticle is uncluttered and easy to use. The upper half of the Field of View remains clean and uncluttered for unimpeded observation. To allow rapid engagement of distant targets without touching the elevation turret, short bar aiming points calibrated for standard 5.56mm and 7.62mm service ammo are provided.

The reticle also provides quick ‘no-math’ rangefinding of distant targets. Plus red or green reticle illumination is available. If a rifleman has time, ballistic adjustments can be dialed in using the CMR’s low-profile uncapped finger adjustable turrets. The single-rotation turrets provide audible and tactical adjustments and features Leatherwood’s new “Zero Locking System”, which does exactly what it says. Once the shooter has the scope sighted in, this system allows that alignment to be locked in place. A rheostat allows easy adjustment of the illuminated reticle’s intensity and provides Night Vision settings for use with Night Vision Devices. Our 1-4x CMR scope was built to survive in the toughest of conditions, a military environment.

It has successfully passed abusive European military testing not only mounted on a rifle, but on a General Purpose Machine Gun as well. Other features include tough, wear resistant Perma-Coat soft luster blue-black finish, lenses polished to photographic quality, “Tri-Center” spring tension for positive windage and elevation adjustment, and a Fast Focus large diameter ocular lens. Hi-Lux’s CMR scope offers exceptional performance at a shockingly affordable price.

CMR1 Manual [download]

AVS-CMR1 Reticle



AVS-CMR1 Reticle Description

- The Mil-Radian based CMR1 reticle is designed to be fast.With an illuminated horseshoe and center dot, the CMR14X24 enables shooters to quickly acquire targets even while moving.

- BDC Designed around the ballistics of a 62 grain. 223/168 grain .308.

- The tick marks below the center dot can are dual purpose: they reference the BDC holdovers for 200m-800m and provide framing marks from edge to edge for a 1/2 meter target for 200m to 800m.

- This reticle is accurate at 4X.

AVS-CMR-AK762 Reticle



AVS CMR-AK762 Reticle Description

- The Mil-Radian based AVS-CMR-7.62 AK is designed specifically around the ballistics of the Russian 7.62X39mm service round 57-H-231 or 7H23. The BDC is also accurate for 300 BLK supersonic up to 600 meters/ Simillar to the CMR14X24 reticle, the BDC tick marks can also be used to range 1/2 meter wide targets from end to end.

- There are ranging marks on the right side of the horizontal axis. These crosses can be used to frame a man sized target(1.75m tall by 1/2m wide). The largest framing crosson the right is used to frame a target at 100m. There are 10 crosses that can be used to frame distances every 100meters out to 1000meters.

- The 10 mil hash mark measures 1Mil. The 15 Mil hash Mark measures 2.5 Mils. The 30 Mil Hash Mark measures 3 Mils.

- This reticle is accurate at 4X.

MODEL NO.

POWER

OBJ. LENS

FOV @ 100 YDS

EXIT PUPIL RANGE

EYE RELIEF

LENGTH

WEIGHT

COATING

RETICLE

ELEVATION

WINDAGE

TUBE DIAMETER

CMR14X24

1X-4X

24mm

94.8'-26.2'

11.1mm (@1X) – 6mm (@4X)

3"

10.2"

17.1oz

Diamond Tuff14

AVS-CMR1

1/2 MOA

1/2 MOA

30mm Tube

CMR14X24

1X-4X

24mm

94.8'-26.2'

11.1mm (@1X) – 6mm (@4X)

3"

10.2"

17.1oz

Diamond Tuff14

AVS-CMR-AK762

1/2 MOA

1/2 MOA

30mm Tube

**Diamond Tuff14:  All air glass surfaces are fully multi-coated using the special technology to maximize the light transmission.
