The Leatherwood ART X-BOW is a 1X to 4X variable power scope that automatically corrects your line of sight from 20 yards to 80 yards.
This is accomplished through the use of a unique circular cam that actually raises and lowers the rear of the scope. The effect of this, when aimed at a target, is to correspondingly lower and raise the line of flight of the bolt, and thereby adjust your aim to eliminate the effect of bolt drop due to gravity.
The Leatherwood ART X-BOW does not rely on fragile internal ranging devices, complicated and undependable battery-based electronics, or changes to the elevation and windage adjustments. It is actually a mechanical computer that calculates the trajectory correction based on the target being framed in the reticle.
By using one trajectory cam that is incrementally adjustable for your bow weight and bolt type, the ART X-BOW is the ONLY scope that is able to mechanically compensate for the curved trajectory of a crossbow.
Magnification: 1-4X
Objective Lens Diameter: 24mm
Eye Relief: 3.5"
Field of View: 95' - 26' ft @ 100 yards
Tube Size: 30mm
Length: 10.2"
Weight: 31.5 oz
Magnification: 1-4X
Objective Lens Diameter: 24mm
Eye Relief: 3.5"
Field of View: 95' - 26' ft @ 100 yards
Tube Size: 30mm
Length: 10.2"
Weight: 31.5 oz
Building on technology developed for U.S. Army snipers in Vietnam, the ART X-BOW greatly enhances the ability to hit with one of Man’s oldest sporting weapons.
Building on technology developed for U.S. Army snipers in Vietnam, the ART X-BOW greatly enhances the ability to hit with one of Man’s oldest sporting weapons.

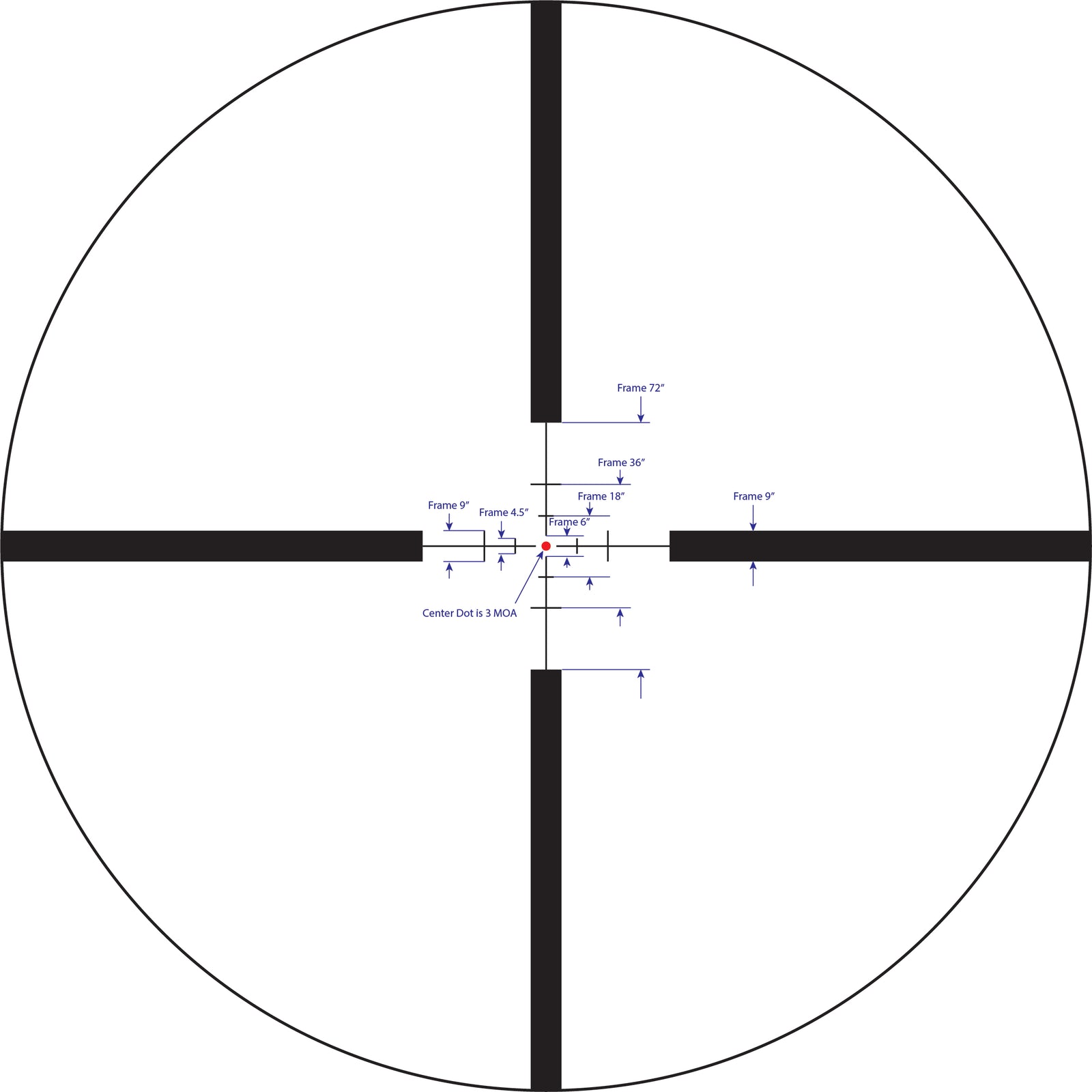

The ART X-BOW utilizes a clear framing reticle to allow for maximum speed in the field.
There are various known dimensions subtended by the reticle to allow for quick and easy framing.
Using the Frame Aim Shoot Technique (FAST), the ART X-BOW will automatically compensate for your bolt's trajectory.
The center dot of the reticle subtends 3 MOA.
The ART X-BOW utilizes a clear framing reticle to allow for maximum speed in the field.
There are various known dimensions subtended by the reticle to allow for quick and easy framing.
Using the Frame Aim Shoot Technique (FAST), the ART X-BOW will automatically compensate for your bolt's trajectory.
The center dot of the reticle subtends 3 MOA.
The Leatherwood Automatic Ranging Telescope (ARTEL) has been used in armed conflicts since Vietnam.
The Leatherwood ART X-BOW adapts the ARTEL's battle proven capabilities to the modern crossbow platform.
The Leatherwood Automatic Ranging Telescope (ARTEL) has been used in armed conflicts since Vietnam.
The Leatherwood ART X-BOW adapts the ARTEL's battle proven capabilities to the modern crossbow platform.
