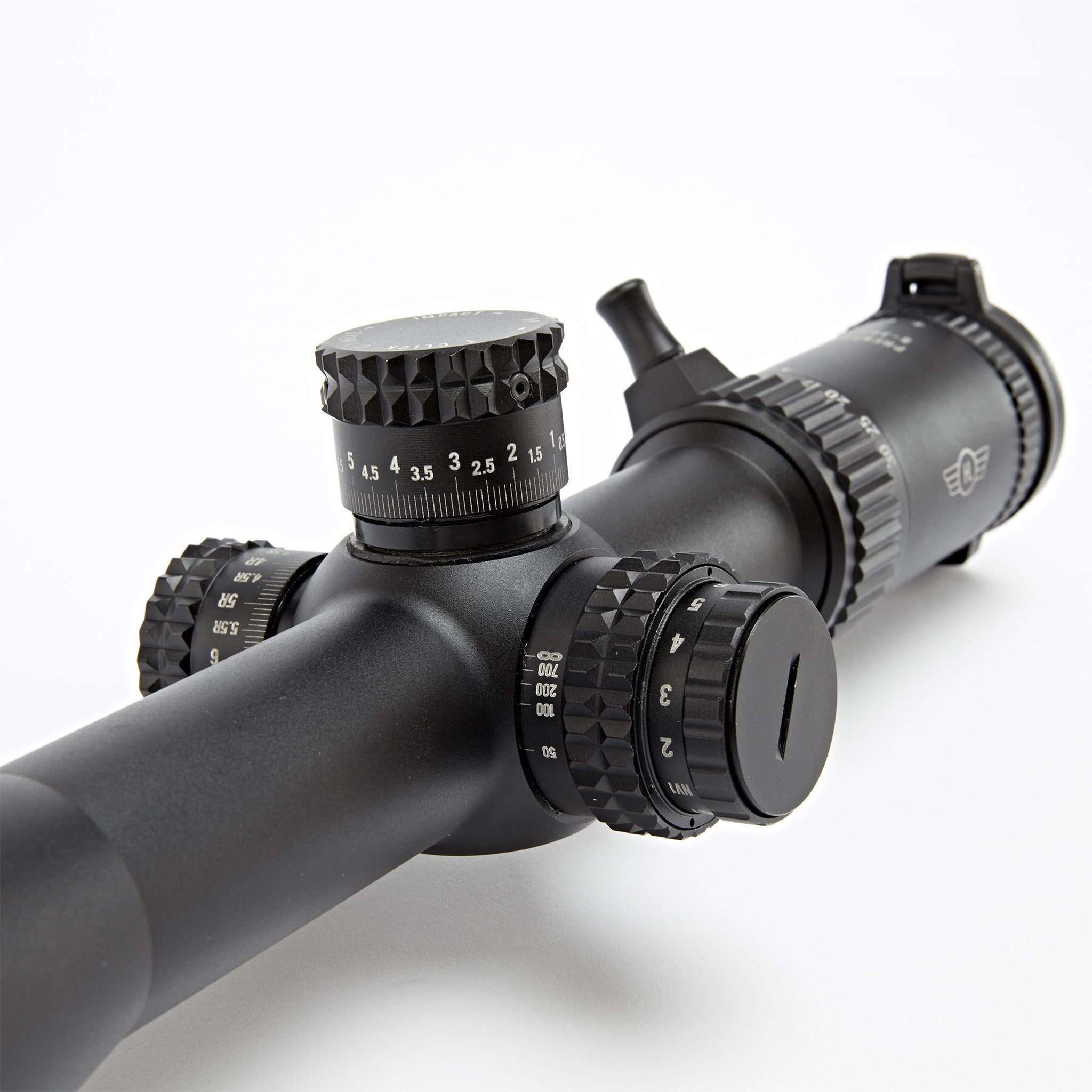

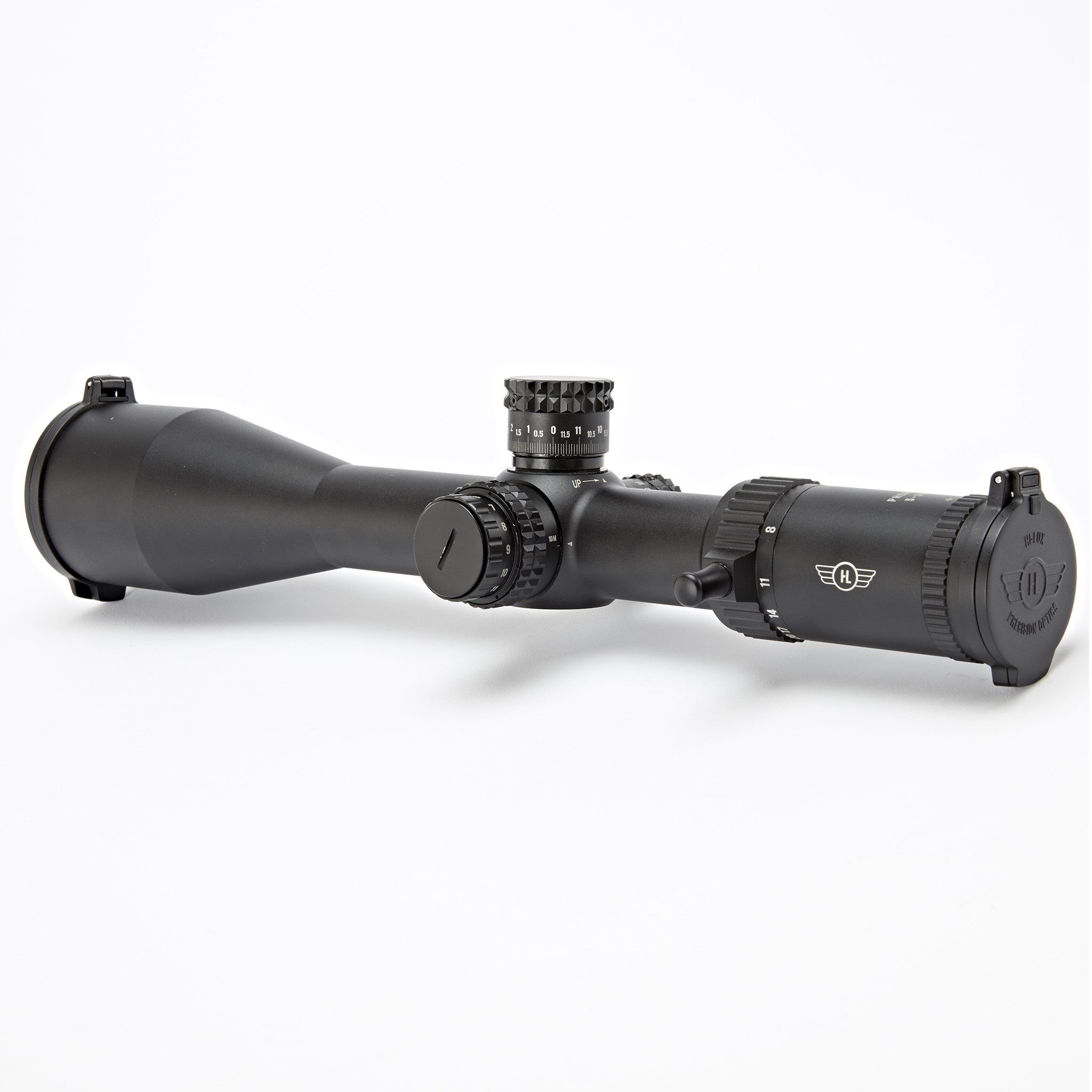

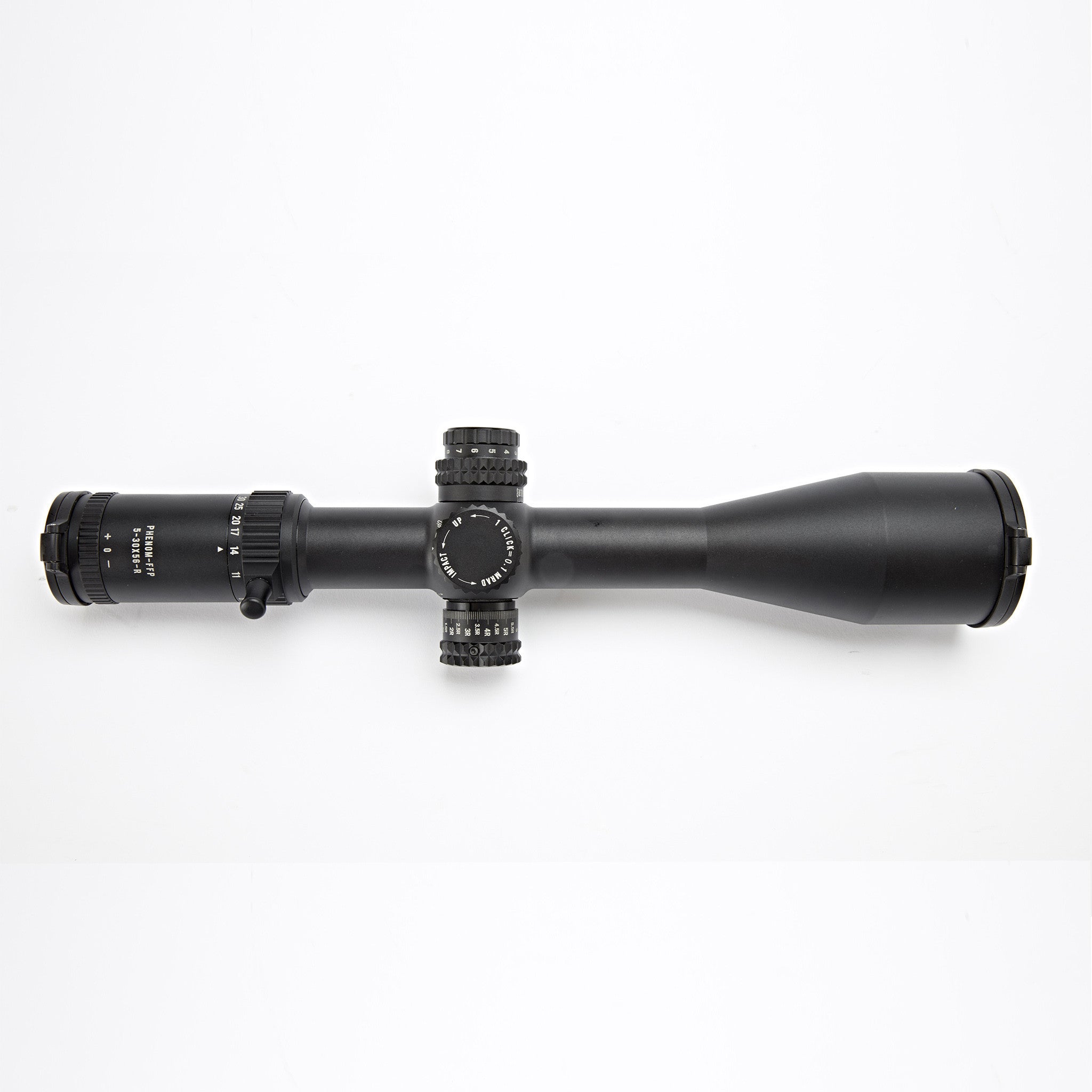

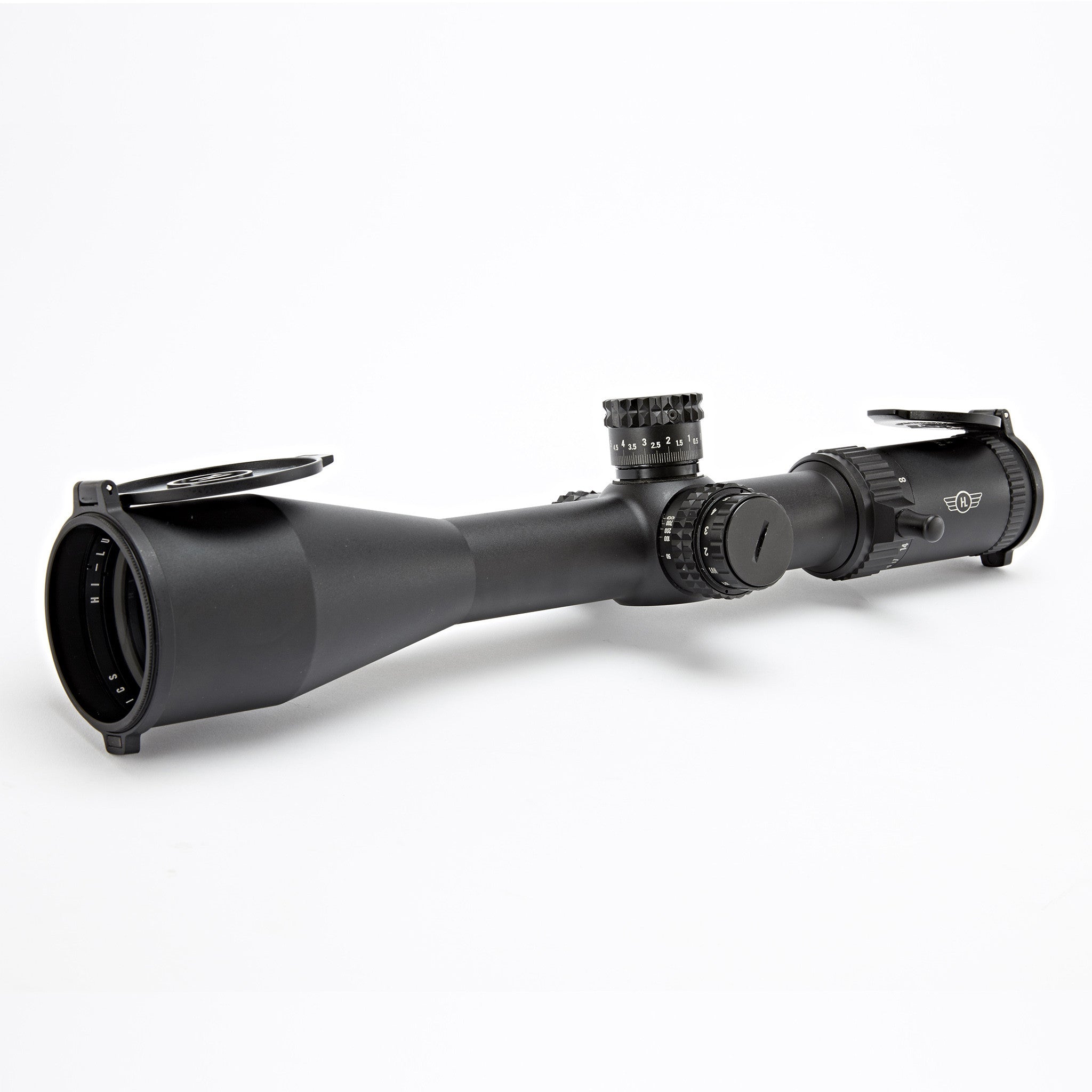

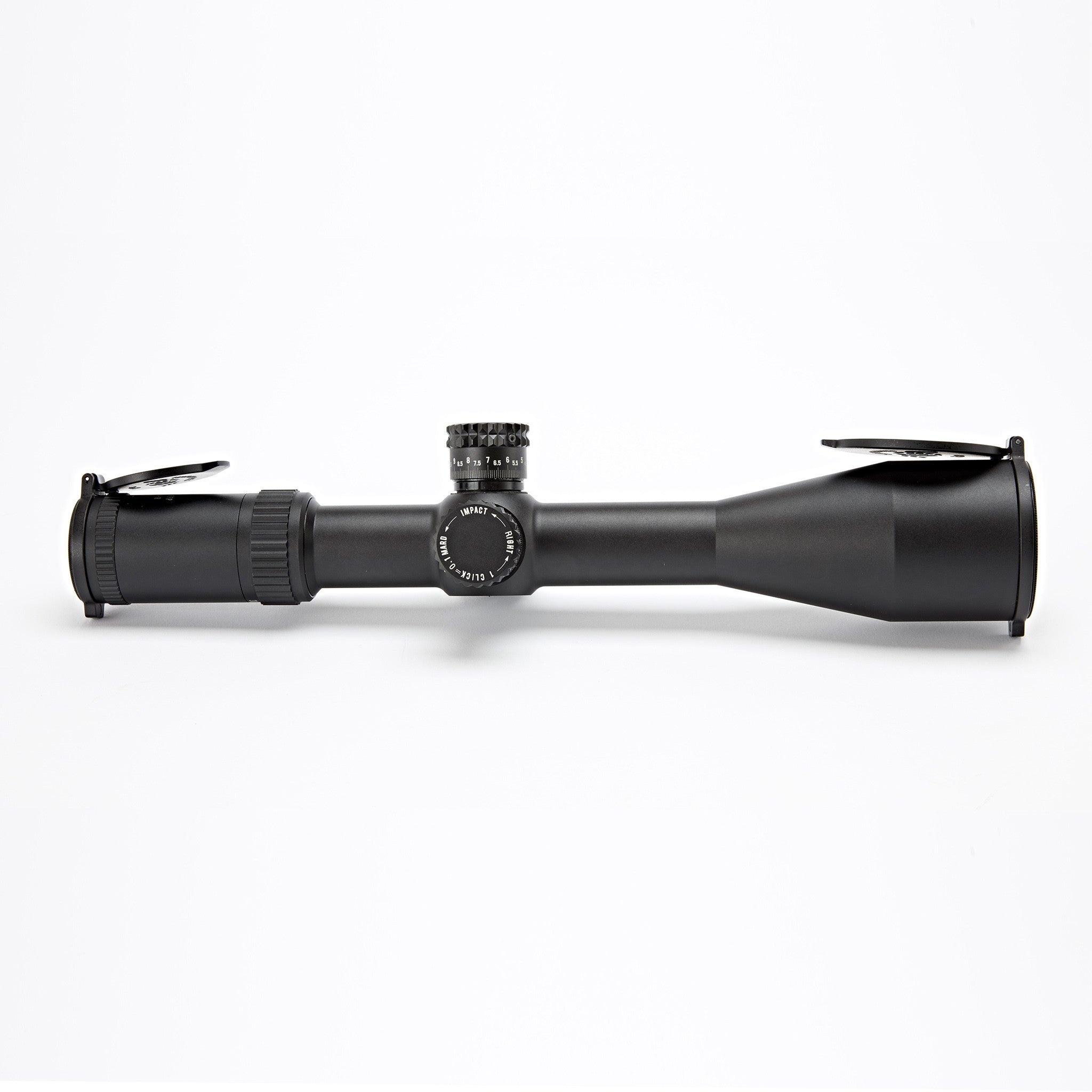

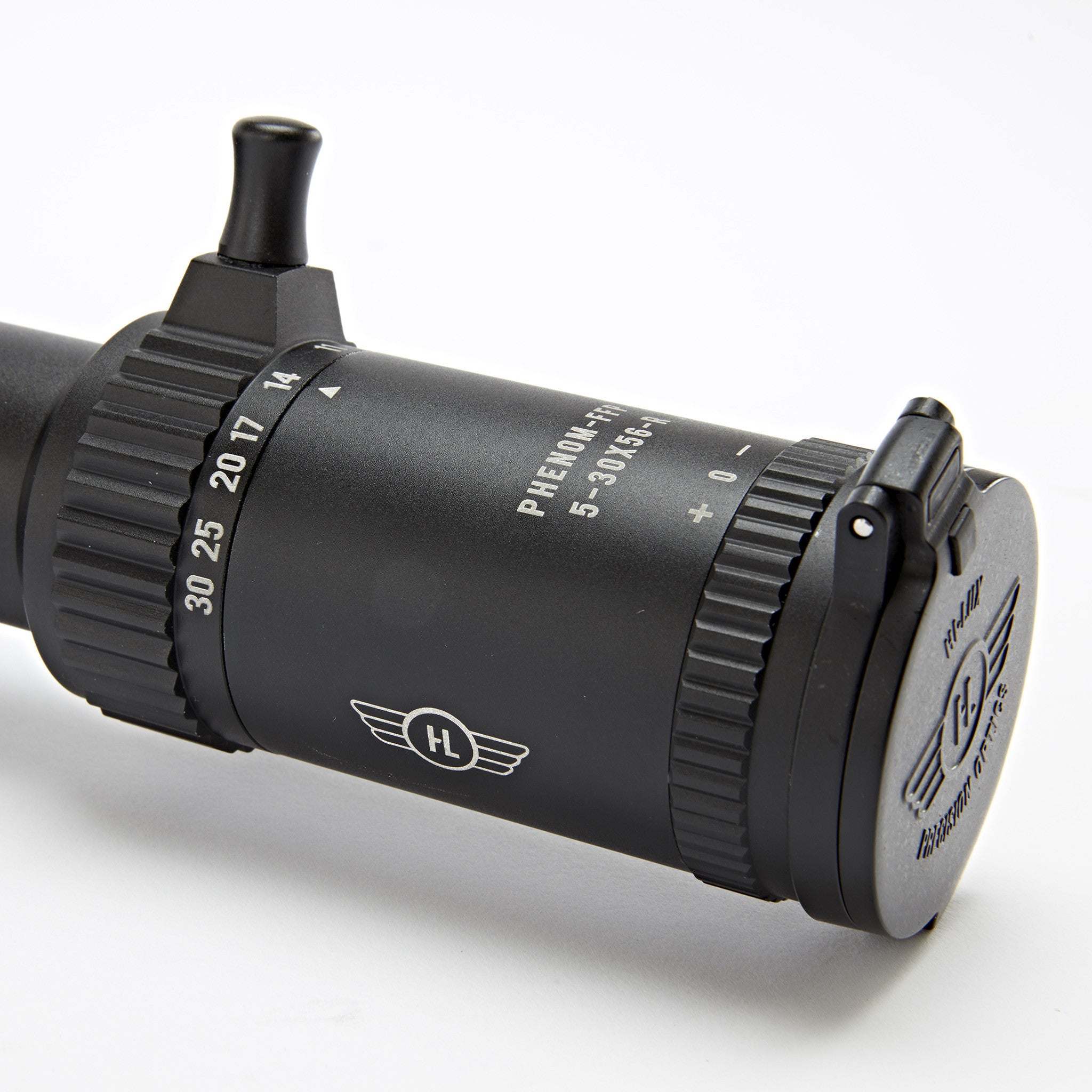

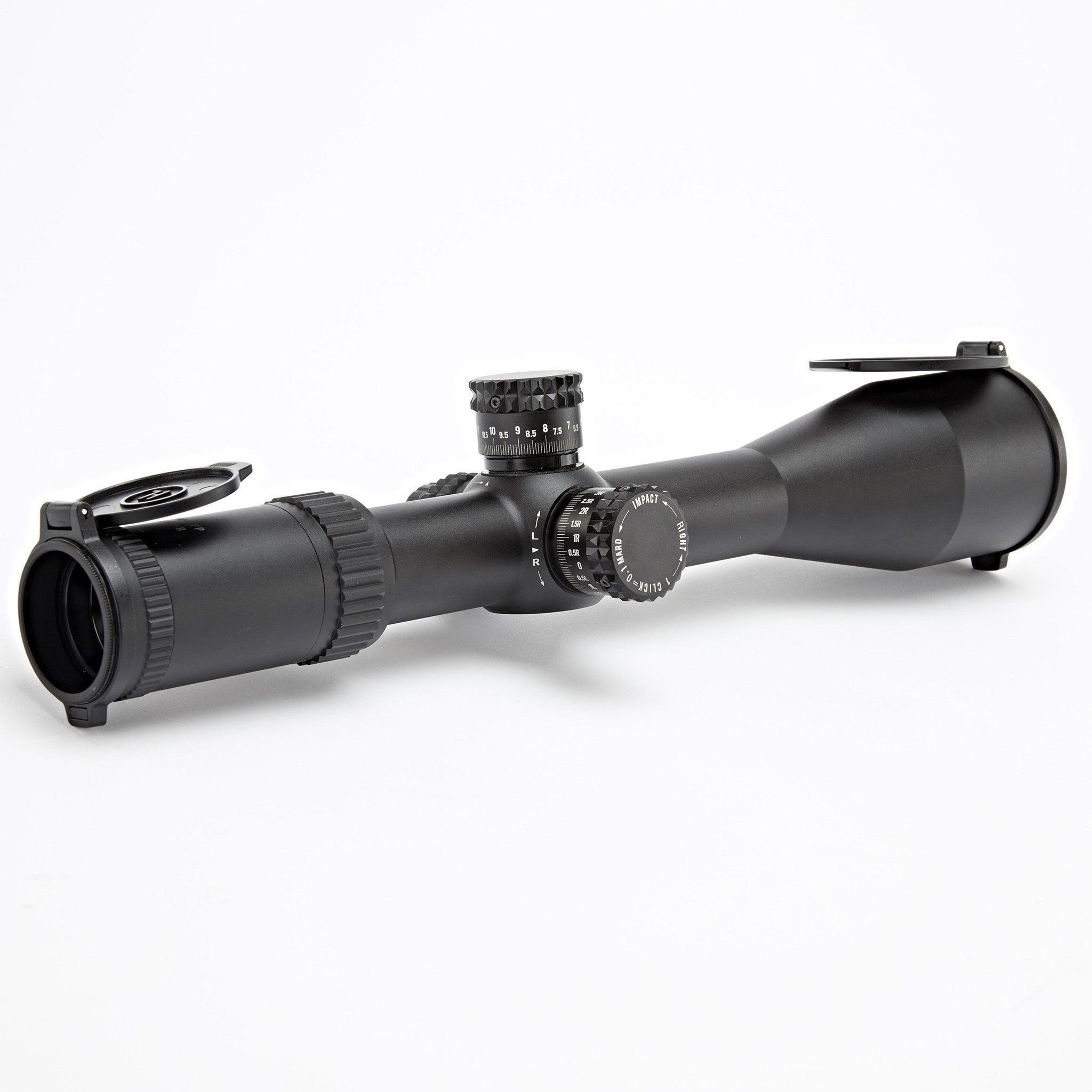

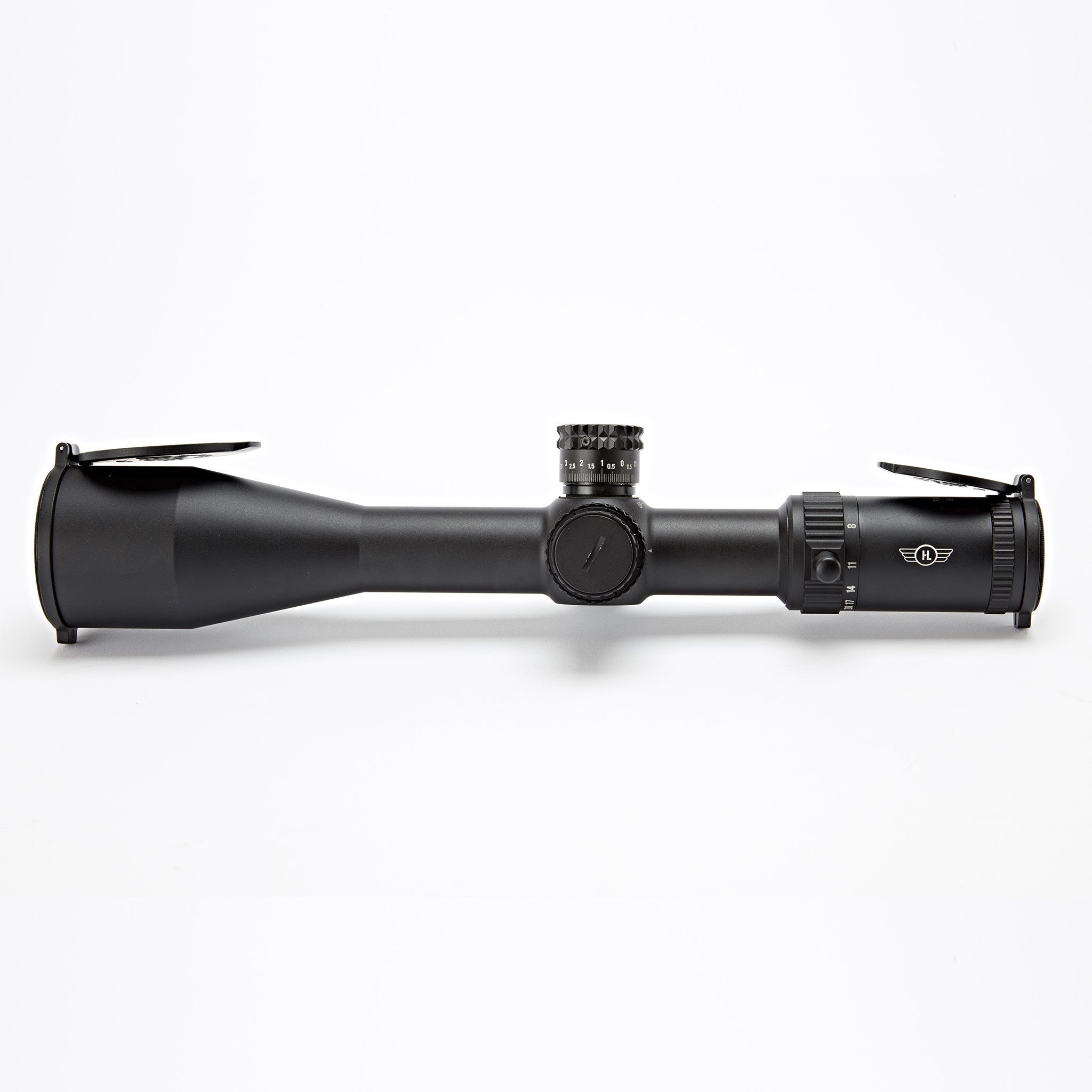

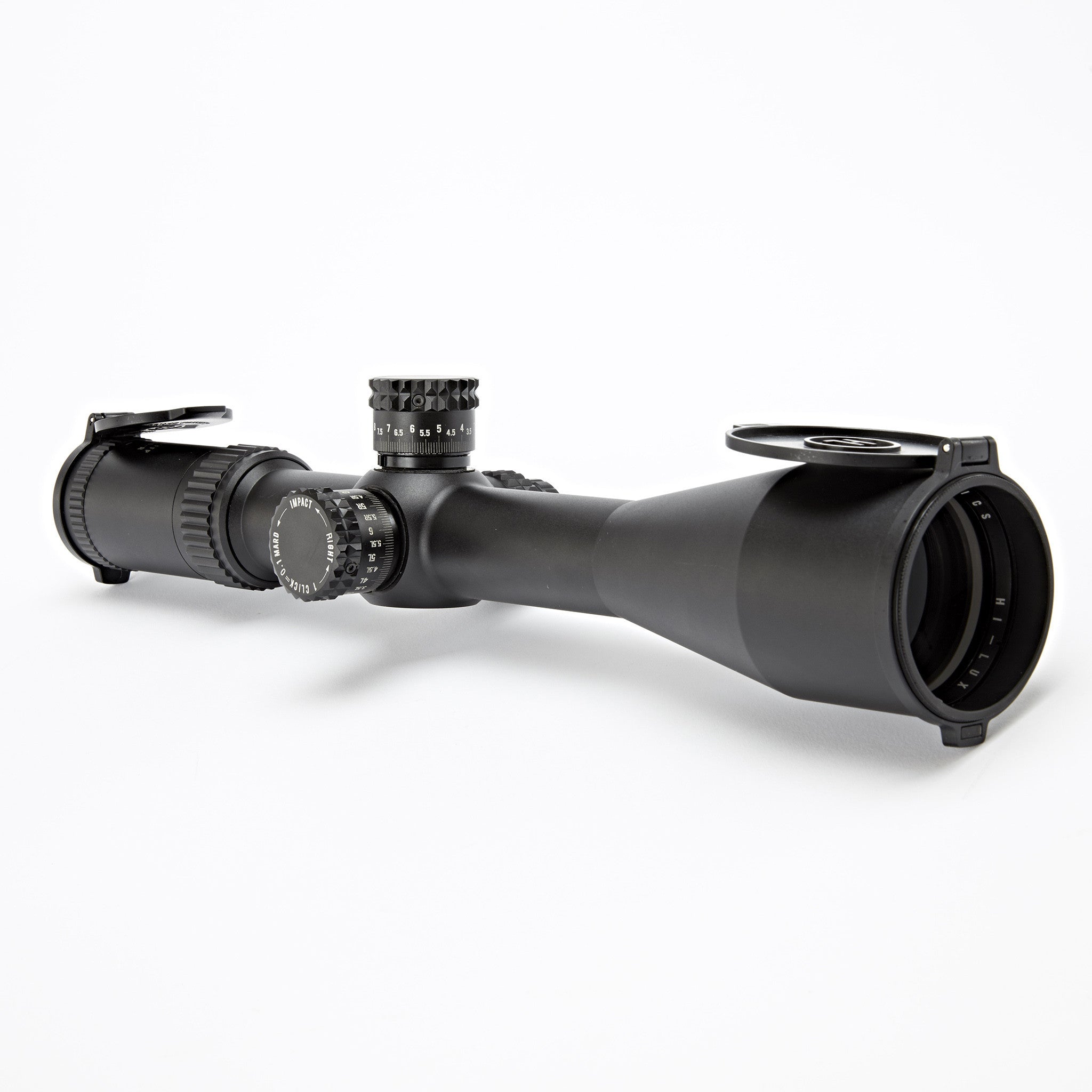

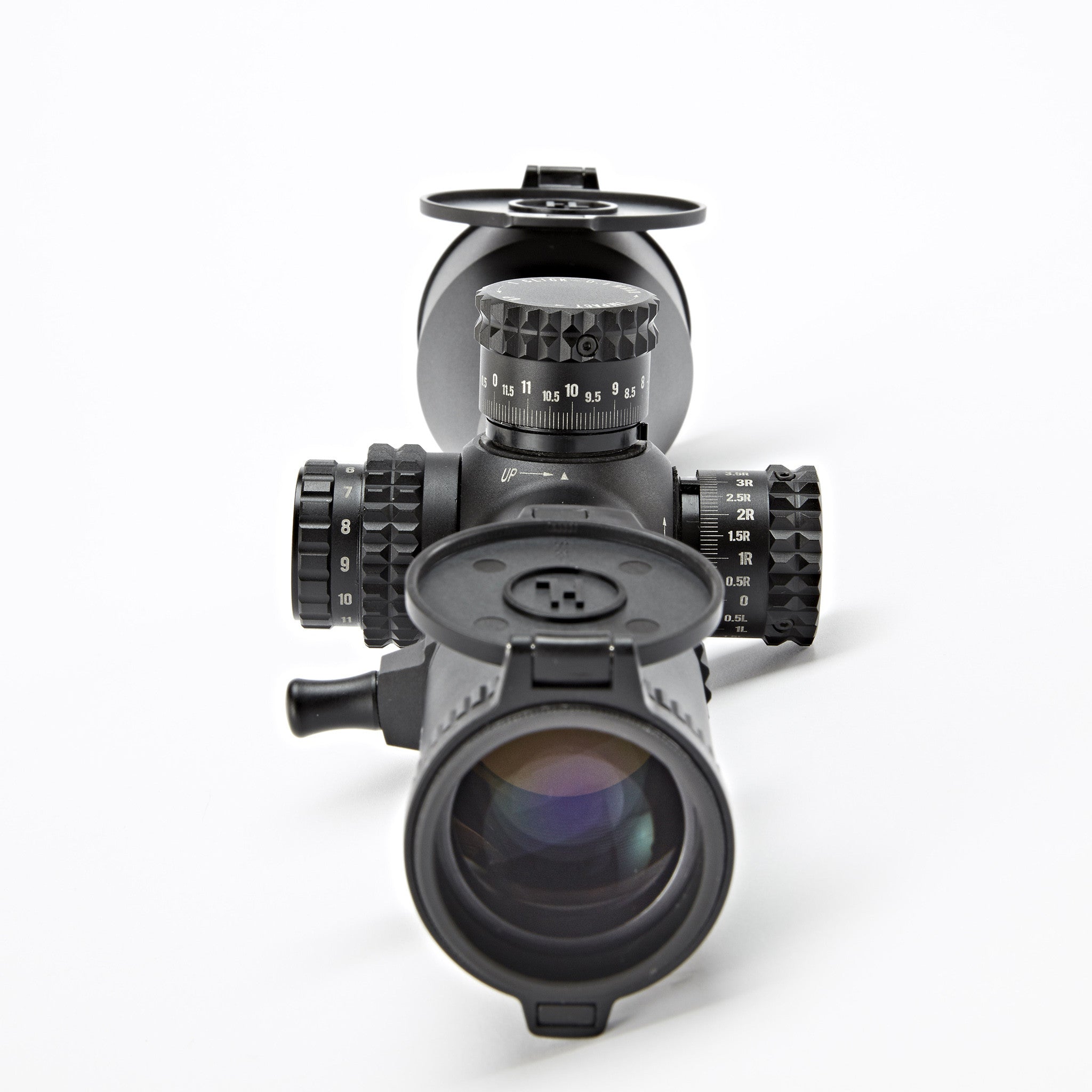

Hi-Lux Phenom 5X-30X 56 FFP Rifle Scope

$840.00

The Phenom series is Hi-Lux Optics first foray into precision long range rifle scopes. Specifically designed for the committed precision shooting, tactical and law enforcement communities, the Phenom 5-30X utilizes the CW-3 reticle.

The CW-3 reticle enables the operator to quickly place follow up shots by tracking the first shot using the various reticle subtensions. As the Phenom 5-30X is a 1st Focal Plane scope, the CW-3 reticle can be used at all magnifications.

By utilizing the Christmas tree portion of the reticle, all windage holdovers can be made on by holding over. Save your internal adjustment for dialing elevation!

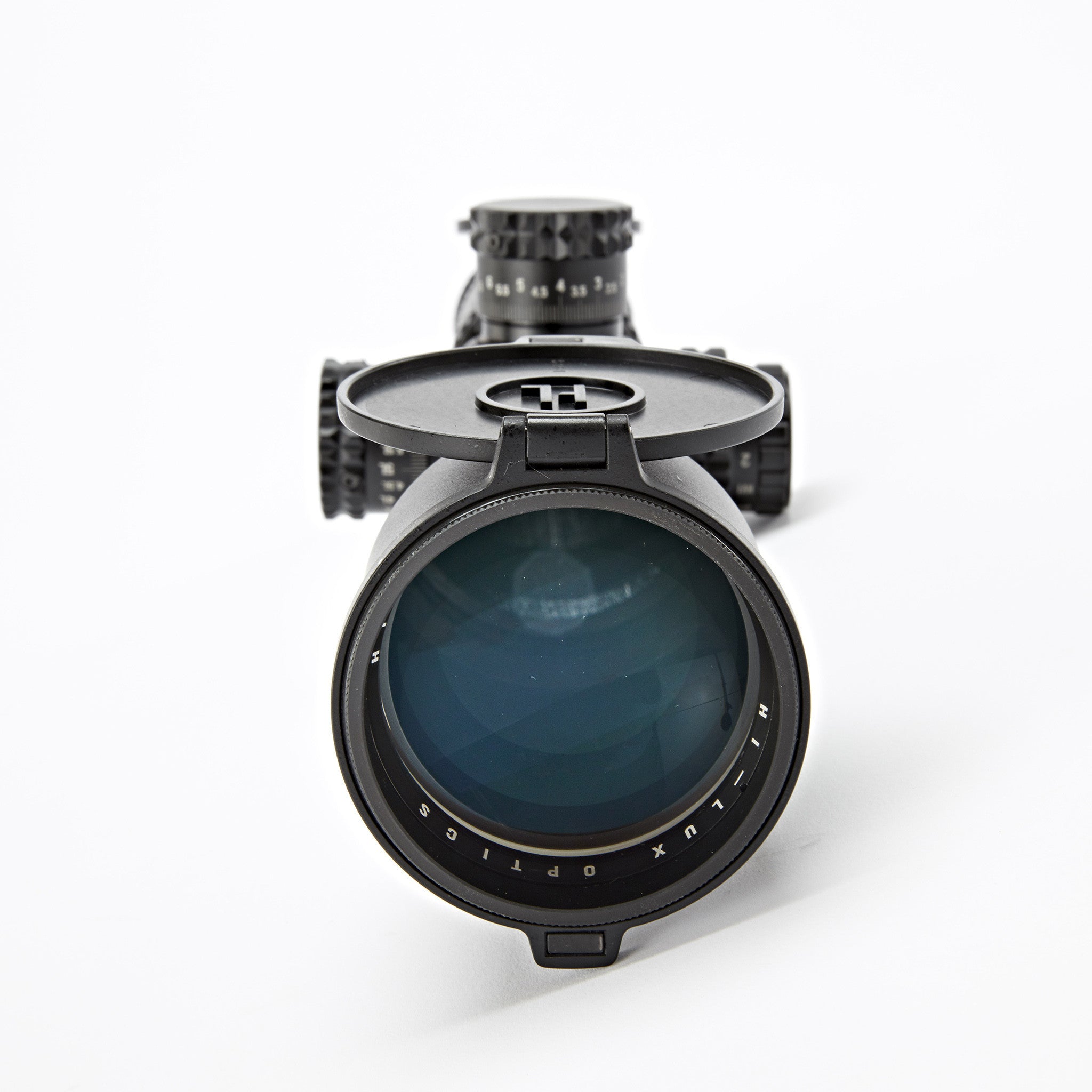

From designing the optical system to eliminating optical shift when changing magnification, the Hi-Lux manufacturing process requires meticulous attention to detail and precision. All glass lenses in the rifle scope are fully multi-coated with DiamondTuff14 for optimal light transmission. Combining the solid 34mm aircraft grade aluminum tube with the Phenom’s large 56mm objective lens maximizes its light gathering capabilities.

Nitrogen purging and rubber gasket seals guarantee fogproof performance in all temperatures and climates.

When competing in shooting competitions, you need to maximize every advantage you have. Designed and tested by former military operators and professional shooters, the Phenom 5-30X is a rugged, yet precise instrument, dedicated to tearing up in the competitive circuit.

Phenom 5-30X56 FFP Rifle Scope Manual [download]
Phenom 5-30X56 Infosheet [download]
CW-3 Reticle Subtensions [download]

Product Information

The Phenom series is Hi-Lux Optics first foray into precision long range rifle scopes. Specifically designed for the committed precision shooting, tactical and law enforcement communities, the Phenom 5-30X utilizes the CW-3 reticle.

The CW-3 reticle enables the operator to quickly place follow up shots by tracking the first shot using the various reticle subtensions. As the Phenom 5-30X is a 1st Focal Plane scope, the CW-3 reticle can be used at all magnifications.

By utilizing the Christmas tree portion of the reticle, all windage holdovers can be made on by holding over. Save your internal adjustment for dialing elevation!

From designing the optical system to eliminating optical shift when changing magnification, the Hi-Lux manufacturing process requires meticulous attention to detail and precision. All glass lenses in the rifle scope are fully multi-coated with DiamondTuff14 for optimal light transmission. Combining the solid 34mm aircraft grade aluminum tube with the Phenom’s large 56mm objective lens maximizes its light gathering capabilities.

Nitrogen purging and rubber gasket seals guarantee fogproof performance in all temperatures and climates.

When competing in shooting competitions, you need to maximize every advantage you have. Designed and tested by former military operators and professional shooters, the Phenom 5-30X is a rugged, yet precise instrument, dedicated to tearing up in the competitive circuit.

Phenom 5-30X56 FFP Rifle Scope Manual [download]
Phenom 5-30X56 Infosheet [download]
CW-3 Reticle Subtensions [download]

CW-3 FFP Ranging Reticle



CW-3 FFP Reticle Description

- Designed with the feedback and insight of professional competitive shooters and military trained marksmen, the CW-3 is a milliradian based reticle that enables the operator to quickly range targets, and make holdovers. Using this reticle, the shooter can visibly trace the bullet's path down range. Additionally, both the elevation and windage axes are numbered for quick holdover reference.

- The CW-3 FFP reticle gives the shooter more data to reference for long range shot placement.

- For windage, every 0.2 Mil graduation is indicated by the tick marks on the horizontal cross hair to 5 Mils on each side.

- On every whole Mil of the reticle, 0.2 Mil graduations are indicated by the crosses and small dots.

- Each cross in the grid measures 0.4 Mil by 0.4 Mil. The center point of each cross also indicate whole Mils.

- For elevation, the is a 0.1 Mil space that indicated 1/2 Mil graduation. The larger 0.1 Mil dot in the grid also indicates 0.5 Mil graduations. The 0.1 Mil graduations between 2-3 Mils above the center of the reticle can be used for vertically milling targets.

- Once this reticle is learned and mastered, the shooter can use CW-3 grid for precise first shot placement, mill targets with ease, and shoot quick follow-up shots.

MODEL NO.

POWER

OBJ. LENS

FOV @ 100 YDS

EXIT PUPIL RANGE

EYE RELIEF

LENGTH

WEIGHT

COATING

RETICLE

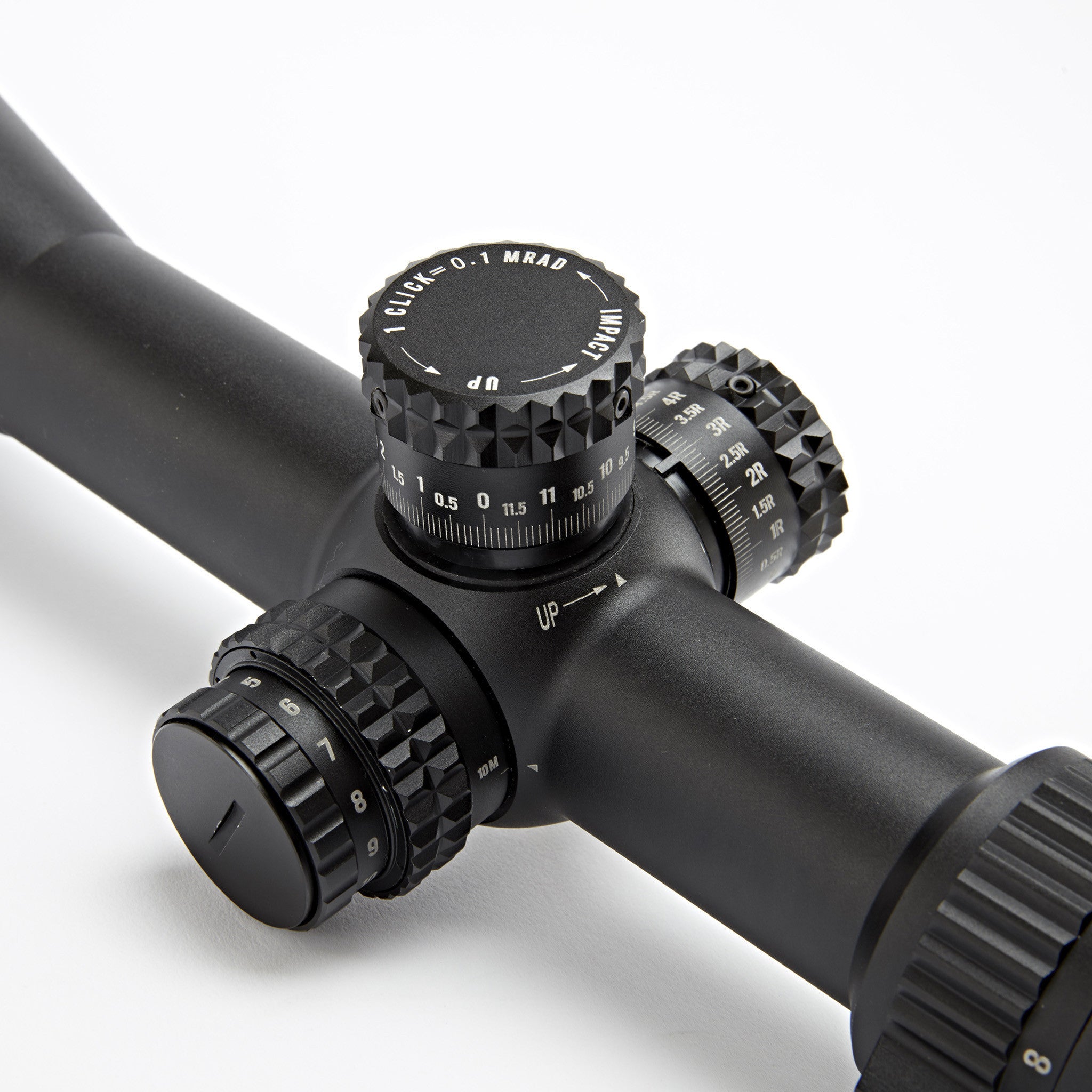

ELEVATION

WINDAGE

TUBE DIAMETER

PM530X56

5X-30X

56mm

25'-4'

10mm (@5X) – 1.7mm (@30X)

3.75"

14.6"

36oz

Diamond Tuff14

CW-3 FFP Reticle

0.1 mRad

0.1 mRad

34mm Tube

**Diamond Tuff14:  All air glass surfaces are fully multi-coated using the special technology to maximize the light transmission.
