Specifically designed for close to medium range tactical applications, including 3-Gun competition, the Hi-Lux Close to Medium Range 1-8X is a first focal plane scope featuring the illuminated CW-4 reticle.
At 1X, the outer horseshoe of the CW-4 reticle naturally directs the operator’s attention to the center of the reticle featuring a 1 MOA dot and large outer horseshoe for quick target acquisition. At higher power, the outer horseshoe moves out of the sight picture, revealing a smaller, inner horseshoe with dots and crosses spaced 1 mRad apart that can be used for estimating winds holds and distance or tracing shots.
There are dots that indicate every whole Mil, which the shooter can use for elevation or windage holdovers. The first focal plane (FFP) design ensures the reticle subtensions are accurate at every power.
The CW-4 reticle is available in red or green illumination and includes 3 night vision light levels.
All glass lenses in the CMR8 is fully multi-coated with DiamondTuff14 for maximum light transmission. Nitrogen and rubber gasket seals guarantee fogproof performance in all temperatures and climates. Zero-LOK turrets prevent the operator from losing his scope’s zero.
When a shooting situation gets up close and personal, you need a scope that was designed and built specifically for that kind of shooting - during a tactical engagement or while hunting dangerous big game. To compromise with anything else could prove to be life threatening. The CMR8 scope is the scope you need.CMR8F Manual [download]
Category: 1-8X 34mm Tube Close Quarters Close to Medium Range CMR CQB FFP Hi-Lux Leatherwood Tactical
Objective Lens Diameter: 26mm
Eye Relief: 3.5"
Field of View: 95' - 26' ft @ 100 yards
Tube Size: 34mm

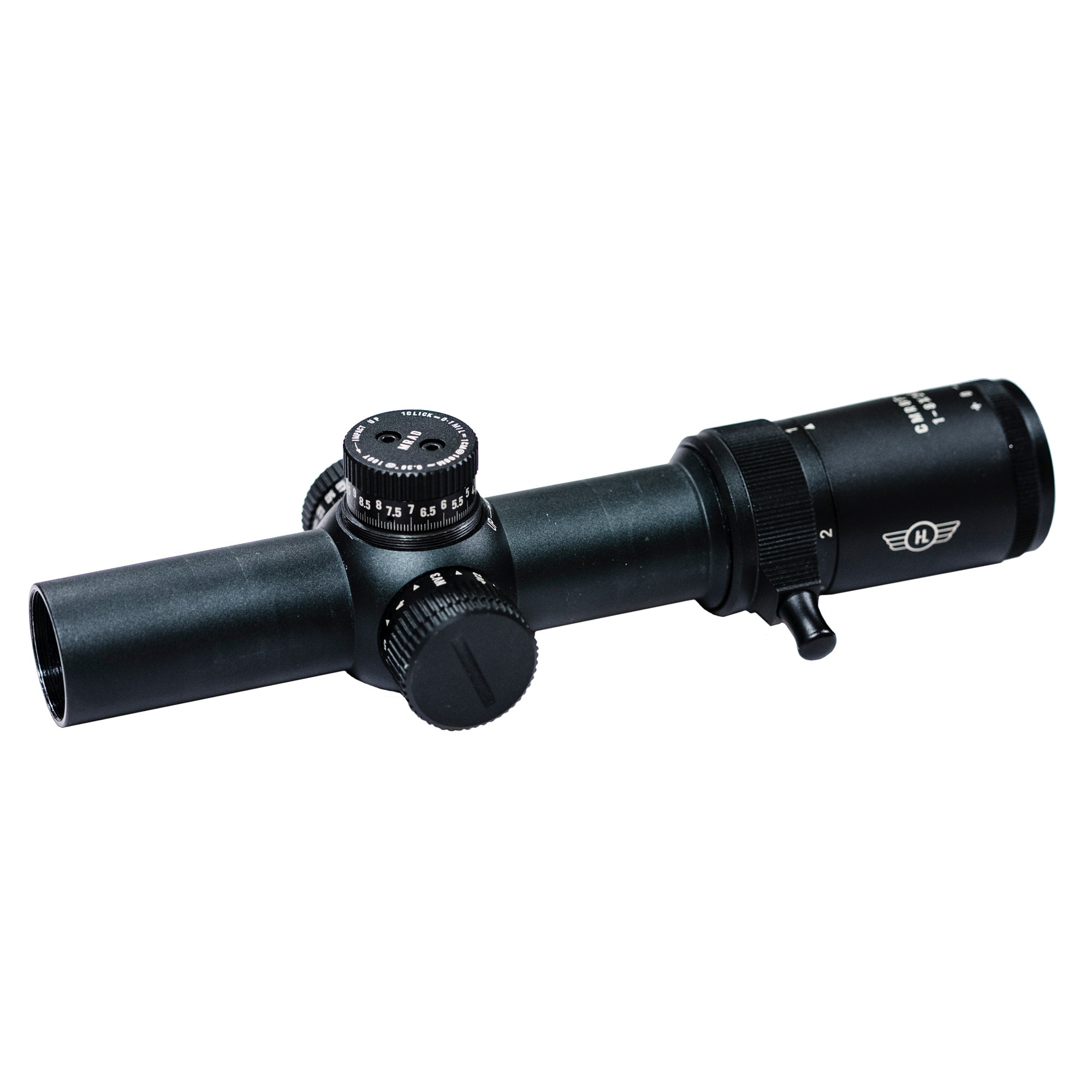

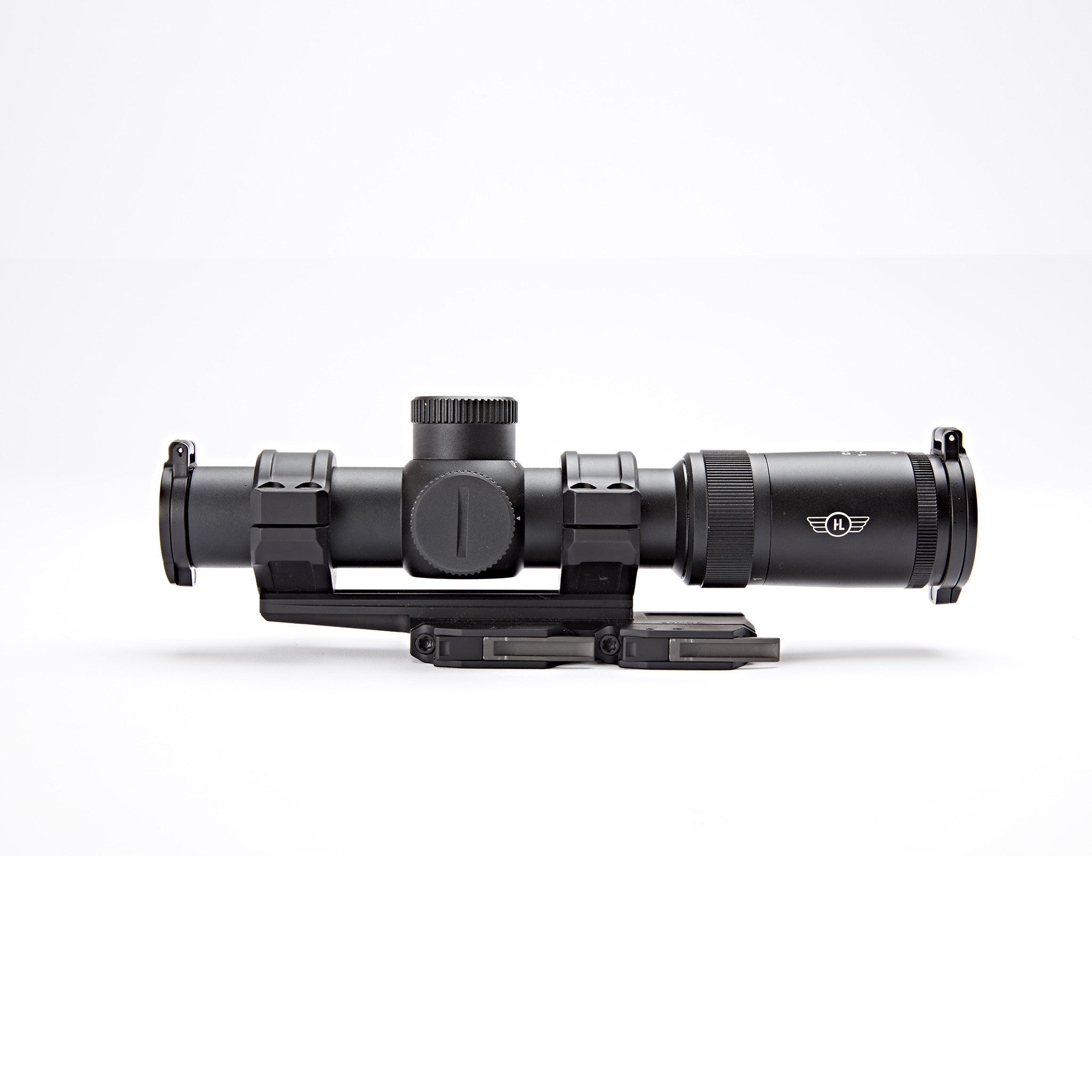

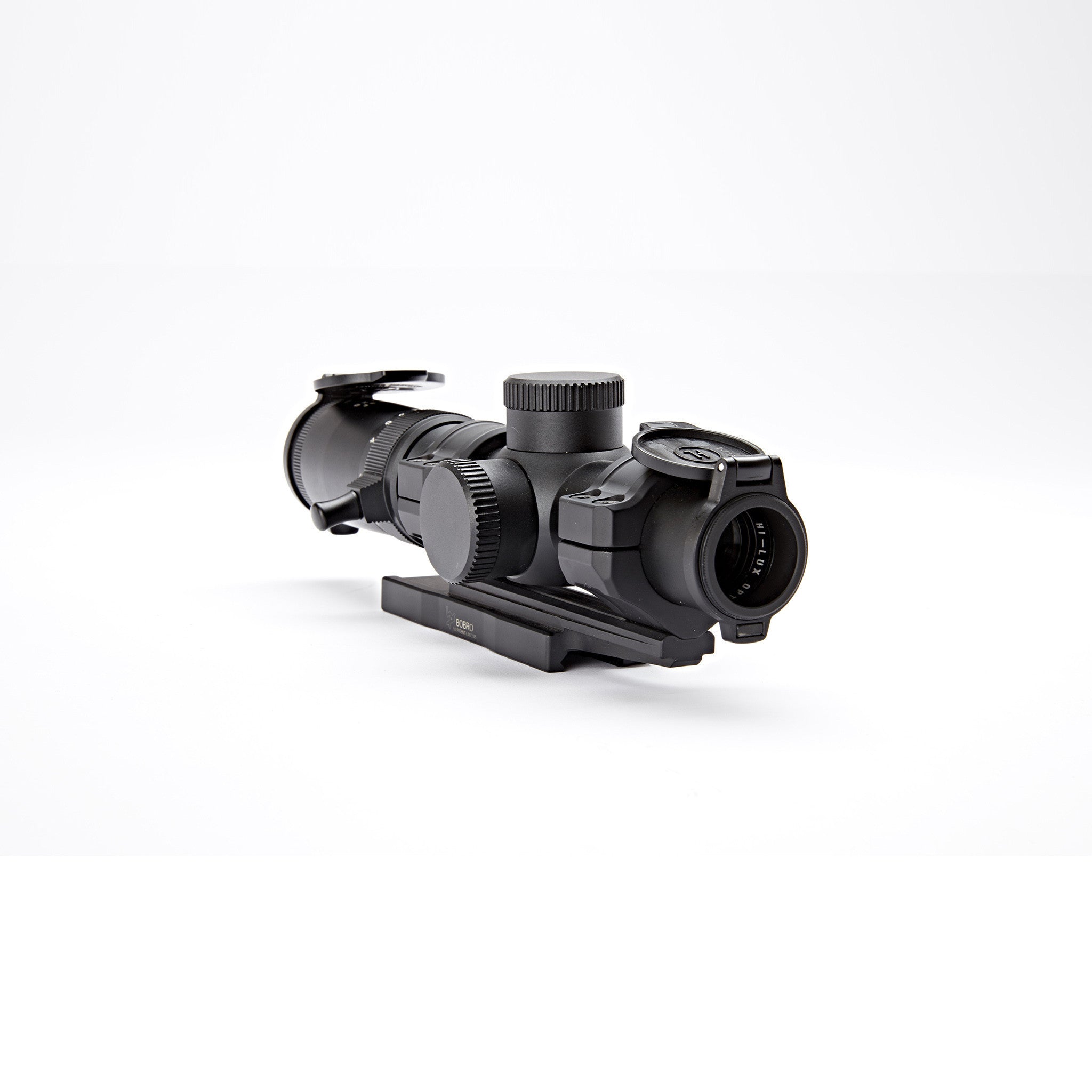

Constructed from a solid 34mm aircraft grade aluminum tube, the CMR8 features a wide 8X Magnification ratio. At 1X, the outer horseshoe of the CW-4 reticle naturally directs the operator’s attention to the center of the reticle for quick target acquisition. At higher power, the outer horseshoe moves out of the sight picture to reveal equally spaced mil dots that can be used for holdover or range estimation. As the CMR8 is a 1st focal plane scope (FFP), the reticle subtensions are accurate at every power.

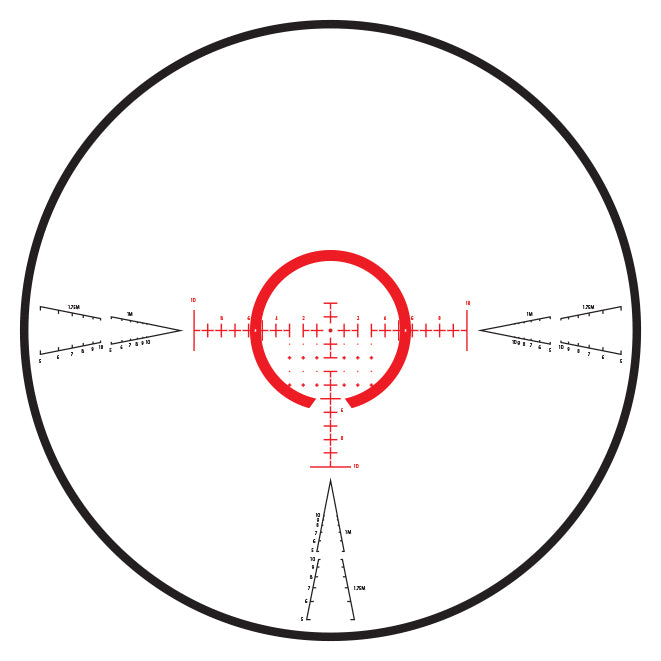

• The CW-4 Reticle is a mRad reticle designed for 2Gun, 3Gun and other run and gun AR-15 competitions.
• The center dot measures 1 MOA (0.291mRad).
• The inside diameter of the LARGER horseshoe (not including the thickness) measures roughly 55mRad in diameter.
• The outside diameter of the LARGER horseshoe (including the thickness) measures roughly 65mRad in diameter.
• Reticle shows sight picture at 1X.
• The inside diameter of the SMALL horseshoe(not including the thickness) measures 10mRad in diameter.
• The outside diameter of the SMALL horseshoe(including the thickness) measure 12 mRad in diameter.
• At 8X, there are triangular choke-style range finders that can range targets of 1m and 1.75m from 500 to 1000 meters.
• There are also dots and crosses spaced 1 mRad apart within the small inside horseshoe that can be used for estimating winds holds and distance or tracing shots.
